Custom Axle Orders
Axle order forms.
Axle Inc. builds custom trailer axles to your spec - sprung leaf-spring or rubber torsion, in capacities from 1,000 to 10,000 lb. Download the form that fits your application, fill in your dimensions, and send it back. We'll quote and confirm before anything goes on the build floor.
Downloadable order forms
Print, fill in, and email completed forms to info@axleinc.com or fax to (574) 266-0042. If a measurement is unclear, leave it blank - we'll work through it with you on the call.
Sprung (Leaf Spring) Axle Order Form
Specify tube diameter, capacity, drop configuration, brakes, hubs, hub-face & spring-center dimensions, spring pads, and replacement spring details.
Download formTorsion Axle Order Form
Specify capacity, tube shape, brakes, hub face, bracket inside/outside, bracket direction, side-mount hangers, bolt pattern, stud size, and start angle.
Download formWhich axle do I need?
Two suspension styles cover almost every light-duty trailer on the road. If you're not sure which is right, call us - we'll walk through the application before you fill in a single dimension.

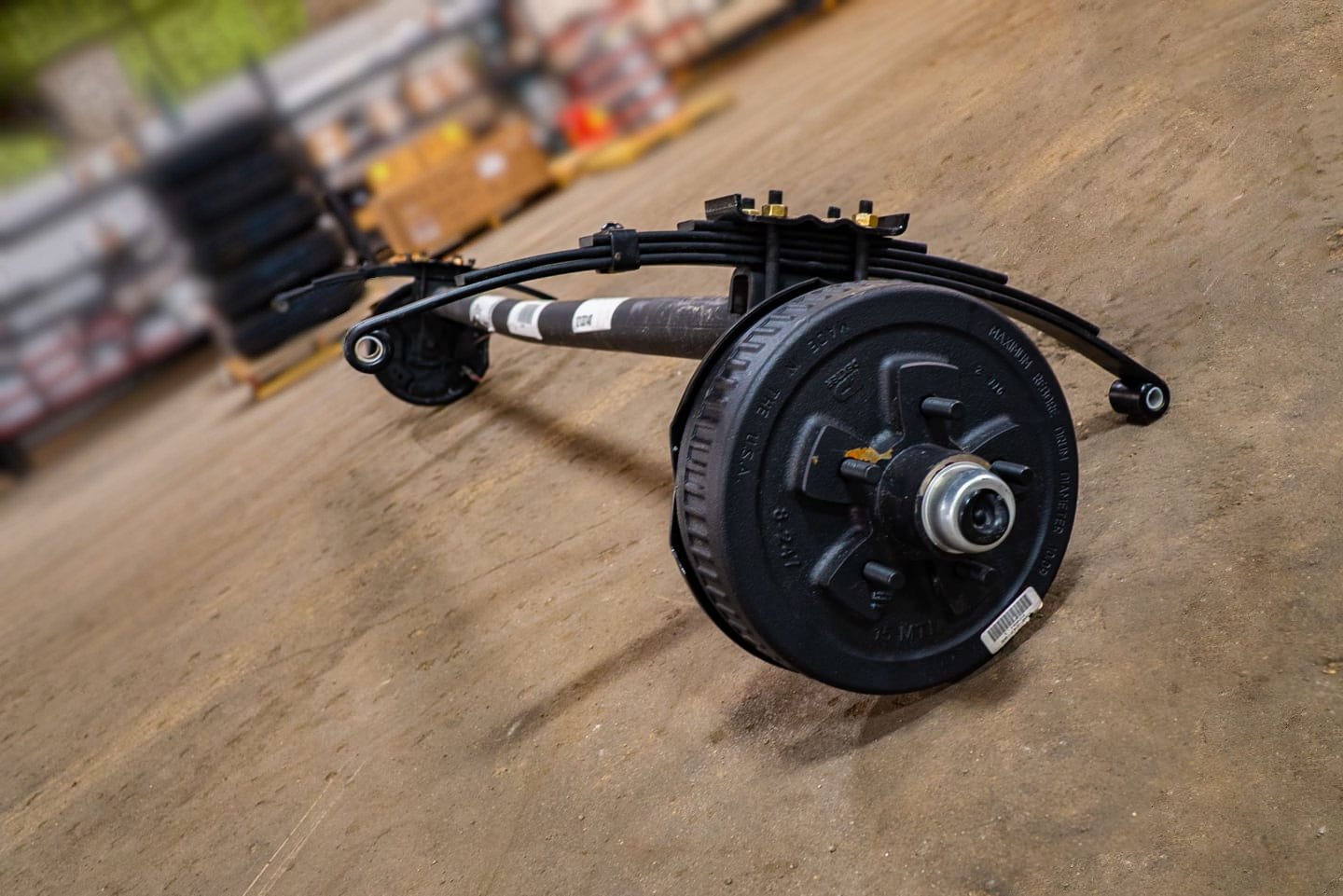

Leaf Spring Axle
Leaf spring axles are part of the spring suspension system, which helps the wheels on a trailer move freely from the truck body. They come in a number of variations depending on the trailer's weight and number of axles. Leaf spring suspension provides durability, even tire wear, and is a cost-effective option. Available in straight, drop, and drop-center configurations - as an idler axle or with electric, hydraulic, or hydraulic disc brakes. Capacities from 1,000 to 10,000 lb.

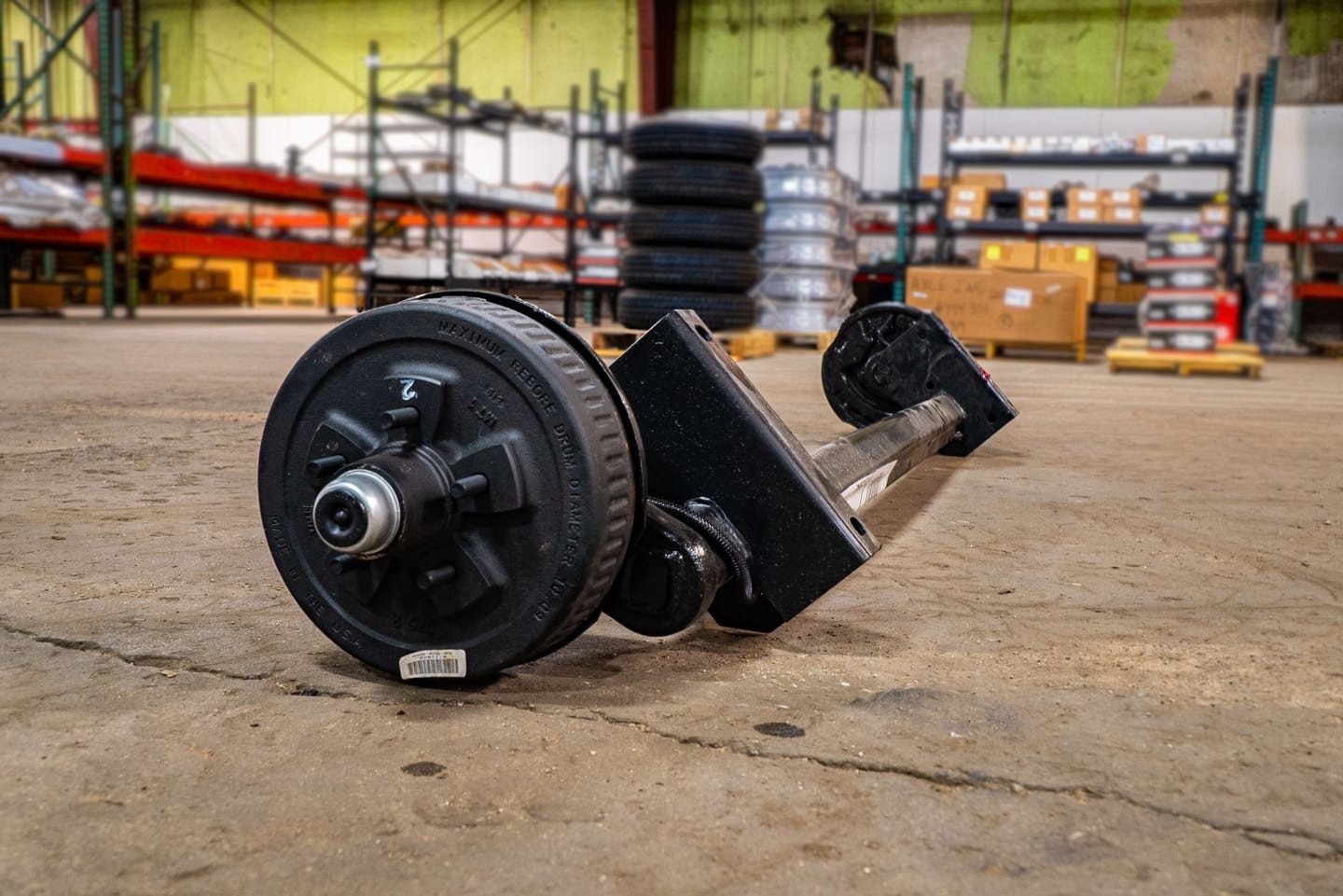

Rubber Torflex Axle
Torflex axles, unlike their leaf-spring counterparts, are made up of rubber cords that provide suspension and shock absorption. They offer a smoother ride and longer-lasting components - best used for light- to medium-duty trailers. Available with electric, hydraulic, or hydraulic disc brakes.
What we'll need from you
Custom axles live or die on a few measurements. Before you start the form, have these ready:
- Capacity - the rated load each axle has to carry, not the trailer's GVWR.
- Hub face dimension - outside of hub face to outside of hub face.
- Spring center (sprung axles) - center-to-center of spring pads.
- Bracket dimensions (torsion axles) - inside and outside of bracket.
- Bolt pattern and stud size - has to match your existing wheels.
- Brake type - electric, hydraulic drum, or hydraulic disc.
If you can pull the spec plate off your existing axle and photograph it, that usually settles half the form by itself.
Lead times and pricing
Standard configurations ship in days, not weeks - we keep the high-volume capacities and brake assemblies on the shelf. Unusual specs (long tubes, custom bracket geometry, mixed brake types) take a little longer; we'll quote both price and lead time on the same call.
